Vertex Synapse

The SentinelOne Validin Power-Up connects a Vertex Synapse instance to the Validin API. It allows you to query Validin data sources - including passive DNS, HTTP crawl data, WHOIS records, and TLS certificates - and ingest them directly into the Synapse hypergraph.

📘

What is Synapse?

Synapse is an intelligence analysis platform from the Vertex Project that represents data as a hypergraph. This integration maps Validin data to Synapse nodes such as inet:fqdn (domains), inet:whois:rec (WHOIS records), and inet:http:request (web requests).

1. Prerequisites ⚙️

To use this Power-Up, ensure your environment meets the requirements for your chosen installation method.

For manual installation:

1. Synapse Cortex version 2.144.0 or higher.
2. A Validin API key with access enabled.
3. Outbound HTTPS access to api.validin.com.

For Docker quick start:

1. Install the core runtime for your OS.
2. Verify the plugin is installed (or use Docker Desktop).
3. Ensure the Docker daemon is active.

2. Installation 🚀

Choose the installation method that matches your environment.

Quick start: Docker Compose

For a minimal working example, you can run the Power-Up in a containerized environment without setting up a full Cortex manually.

🚧

Runtime Constraints

The minimal runtime setup does not include Synapse Axon (blob storage) or FileParser. Whilst you can perform enrichments, commands requiring file downloads or parsing will not function in this mode.

1. Launch the environment

Clone the repository and use docker compose to start a Storm shell with the Power-Up pre-loaded.

# Clone the repository
git clone [https://github.com/SentineLabs/sentinelone-validin.git](https://github.com/SentineLabs/sentinelone-validin.git)
cd sentinelone-validin

# Run the minimal runtime environment
docker compose run --rm storm

2. Configure and test

Once the Storm shell (storm>) loads, configure your API key and run a test query.

// Set your API key
storm> s1.validin.setup.apikey <YOUR_VALIDIN_API_KEY>

// Run a test enrichment
storm> [inet:fqdn=example.com] | s1.validin.dns

Manual installation

If you are installing into an existing production Cortex, follow these steps:

1. Load the package

Clone the repository and load the YAML package into your Cortex:

git clone [https://github.com/SentineLabs/sentinelone-validin.git](https://github.com/SentineLabs/sentinelone-validin.git)

Run the following command in your Storm shell:

// Load the package configuration
storm> pkg.load --path ./sentinelone-validin/s1-validin.yaml

2. Set the API key

Store your Validin API key in the Cortex configuration:

storm> s1.validin.setup.apikey <YOUR_VALIDIN_API_KEY>

3. Performance implications 📊

To optimize your investigation speed and API usage, consider the following strategies when running enrichments.

❗️

API Rate Limits

Bulk enrichment commands (s1.validin.enrich) consume API quota rapidly. Verify your plan limits before you script automated workflows.

API quota strategy

Validin APIs are metered. The s1.validin.enrich command is a "convenience wrapper" that executes four separate API calls (DNS, WHOIS, HTTP, Certs) for every single input node.

• High cost:inet:fqdn | s1.validin.enrich (consumes 4 credits per domain).
• Low cost: inet:fqdn | s1.validin.dns (consumes 1 credit per domain).

Use s1.validin.enrich only on highly suspicious "seed" indicators. For bulk processing of related infrastructure (e.g., 1,000 domains found via a pivot), stick to targeted commands like s1.validin.dns to conserve quota.

Batch vs. single enrichment

Storm automatically batches requests where possible, so make sure your inputs are filtered correctly to avoid "over-enriching" benign data.

• Inefficient (wastes quota): Enriching every domain in your graph, including benign ones like google.com.

// Suboptimal enrichment
inet:fqdn | s1.validin.enrich

• Efficient (saves quota): Filtering for a specific campaign tag before enriching:

// Optimal enrichment
inet:fqdn#campaign.2024.laundrybear | s1.validin.enrich

4. Command references & features 💡

The package adds the following commands to the Storm query language:

Multi-source comprehensive enrichment

The s1.validin.enrich command serves as a unified entry point. Rather than running separate commands for DNS history, HTTP crawls, certificates, and WHOIS records, this single command executes comprehensive enrichment across all four datasets simultaneously.

// Enrich a domain with DNS, HTTP, WHOIS, and Certs simultaneously
inet:fqdn=<target domain> | s1.validin.enrich --wildcard

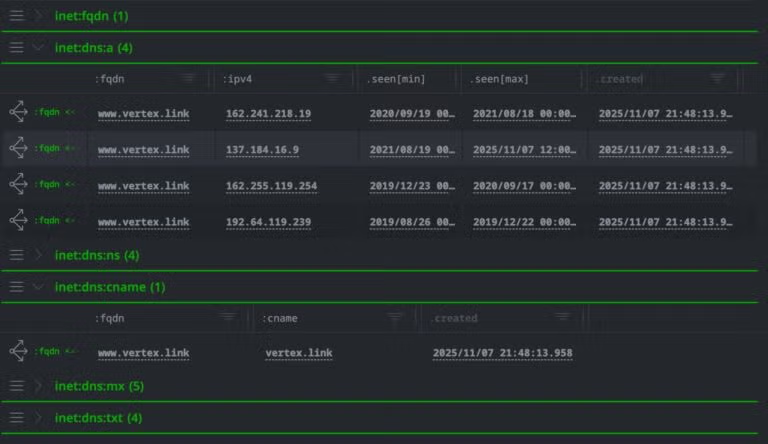

Passive DNS & domain enrichment

The s1.validin.dns command retrieves historical DNS records (A, AAAA, NS, MX, TXT).

👍

Wildcard wins

Using the --wildcard flag returns records for the domain and all subdomains. This is powerful for mapping the full infrastructure scope from a single indicator, but be careful with high-traffic domains.

// Enrich the domain with its registration information, and also include subdomains
[inet:fqdn=<target domain>] | s1.validin.dns --wildcard

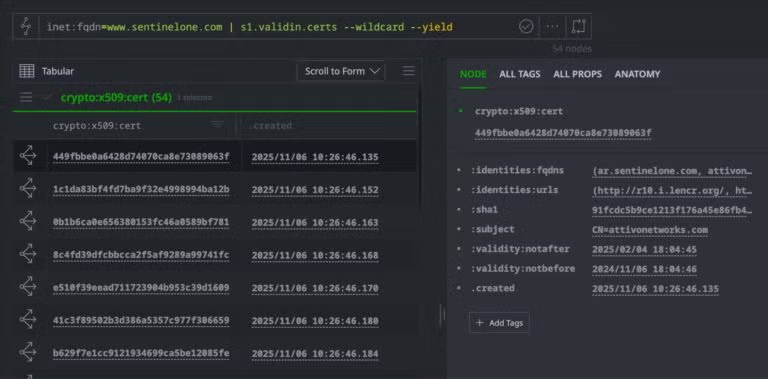

Certificate transparency

The s1.validin.certs command queries Certificate Transparency (CT) logs. Certificates often include Subject Alternative Name (SAN) fields, which Validin parses to find other domains hosted on the same SSL infrastructure.

// Find all domains that share certificates with our target
inet:fqdn=<target domain> | s1.validin.certs --wildcard --yield

WHOIS enrichment

The s1.validin.whois command ingests historical WHOIS registration data. This allows analysts to track changes in infrastructure over time (e.g., detecting when a domain was transferred to a new registrar).

// Enrich the domain with historical WHOIS records
inet:fqdn=<target domain> | s1.validin.whois

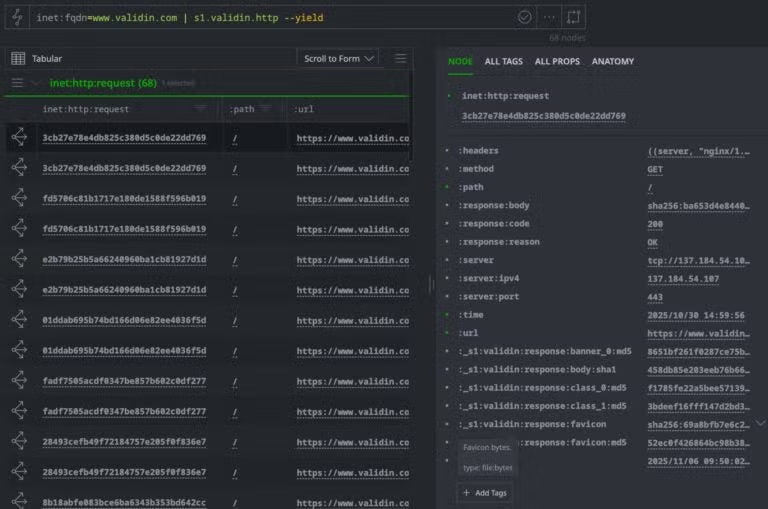

Host response fingerprinting

Validin's crawler fingerprints web server responses. The s1.validin.http command extracts these fingerprints to identify server configuration and content.

// Retrieve HTTP crawl data (headers, banners, hashes) for a host
inet:fqdn=<target domain> | s1.validin.http --yield

The crawler extracts:

• Favicon hashes (MD5) – Often forgotten when templating infrastructure
• Body hashes (SHA1) – Detect identical or templated page content
• Banner hashes – Fingerprint server software and configuration
• Header hashes – Identify shared backend infrastructure
• HTML class hashes – Cluster pages with similar structure

Hash-based pivoting

Traditional graph investigation requires ingesting nodes before analyzing them. Validin's Hash Pivot workflow allows for "Dry Run" analysis using specific fingerprint categories.

🚧

Dry Run

Always use --dry-run when pivoting on hashes (s1.validin.http.pivot). Pivoting on a common hash (like a standard Apache favicon) can return tens of thousands of results, which will flood your graph and deplete your API quota.

High Count (>1000): Likely benign/CDN

Low Count (5-50): Likely a coordinated threat campaign.

When using s1.validin.http.pivot, you can target specific fingerprint types using (--category)

Workflow:

1. (--dry-run) queries the Validin API to count matches without creating nodes.
2. (--yield) generates the nodes in the graph.

// Pivot from a favicon hash to find related domains
hash:md5=<HASH> | s1.validin.http.pivot --category FAVICON_HASH

// Pivot from an HTTP request node's embedded hashes
inet:http:request=<GUID> | s1.validin.http.pivot --yield

// Discover related infrastructure via body hash with a time constraint
hash:sha1=<HASH> | s1.validin.http.pivot --first-seen 2024/01/01

File downloads

If you have synapse-axon configured, you can download the actual content (HTTP response bodies, certificates) Validin observed:

// Download and parse HTTP response bodies
inet:http:request
| s1.validin.download --yield
| fileparser.parse

📘

Parsing requirements

The fileparser.parse command requires the synapse-fileparser package. This extracts indicators such as URLs, email addresses, and IPs from the downloaded HTML or certificate files.

5. Data mapping 🗺️

The Power-Up maps Validin data to specific Synapse nodes. Understanding these mappings helps you construct effective pivots.

WHOIS Enrichment (s1.validin.whois)

• inet:whois:rec: The primary record containing registration and expiration dates.
• inet:whois:rar: The Registrar entity (e.g., NameCheap, GoDaddy).
• inet:whois:recns: Relationships to nameservers associated with the registration.
• inet:whois:contact: Registrant, Admin, and Tech contact details.

HTTP Enrichment (s1.validin.http)

• inet:http:request: Represents the unique event of the crawler seeing the site.
• hash:sha1: The SHA1 hash of the HTTP body (useful for finding clones).
• hash:md5: The MD5 hash of the favicon.
• file:bytes: The raw file content (if downloaded).

6. Troubleshooting 🛠️

Use the table below to resolve common errors when working with the Validin Power-Up.

For help with the Validin Synapse integration, get in touch with the team:

Next steps ➡️

Now that you've configured the Power-Up, here's what to do next:

• Set up a Storm trigger to automatically run s1.validin.dns whenever a new inet:fqdn node is added with a specific tag.
• Visit the Validin Dashboard to visualize the same data you are pulling into Synapse.
• For bug reports or feature requests, visit the GitHub Repository.
